Werma KombiSIGN 71 Terminal Element – Screwable Connector – RM

$36.00 USD

The right solution for every type of mounting, also by means of accessories

  • Bayonet lock enables easy mounting and dismounting
SKU: 64083000 Category: Brand:

Mechanical Data

Height 43
Materials PA-GF; PC
Diameter 70
Housing colour Black
Connection Screw terminals
Product weight 88
Protection Category IP65
Cross-Sectional area minimum 0.25mm² / 24AWG
Cross-Sectional area maximum 1.50mm² / 16AWG
Cable entry Through hole
Cable entry maximum d = 11mm
Weight with packaging 106
Type of fixing Tube mounting
Working temperature minimum -20ºC
Working temperature maximum +50ºC

Electrical Data

Operating voltage 12-230V
Operating voltage type AC / DC
Protection class Protection class 2
Overvoltage category II
Pollution degree 3
Isolation voltage Ui = 250V / Uimp = 2500V

Authorization Data

Conforms with CE Yes
Conforms with RoHS directive Yes
WEEE Yes
Conforms with ATEX-directive No
Conforms with CCC No
Conforms with UL cULus
Conforms with FCC No
UL Type Rating Type 12
Conforms with ISED No
EAC certificate available No
Conforms with UKCA (Importer) Yes
Conforms with AS-I No
Conforms with CMIM No
Conforms with RoHS CN No
ICAO Certification No
Conforms with DNV No
Conforms with VdS No
Conforms with TÜV No

Downloads

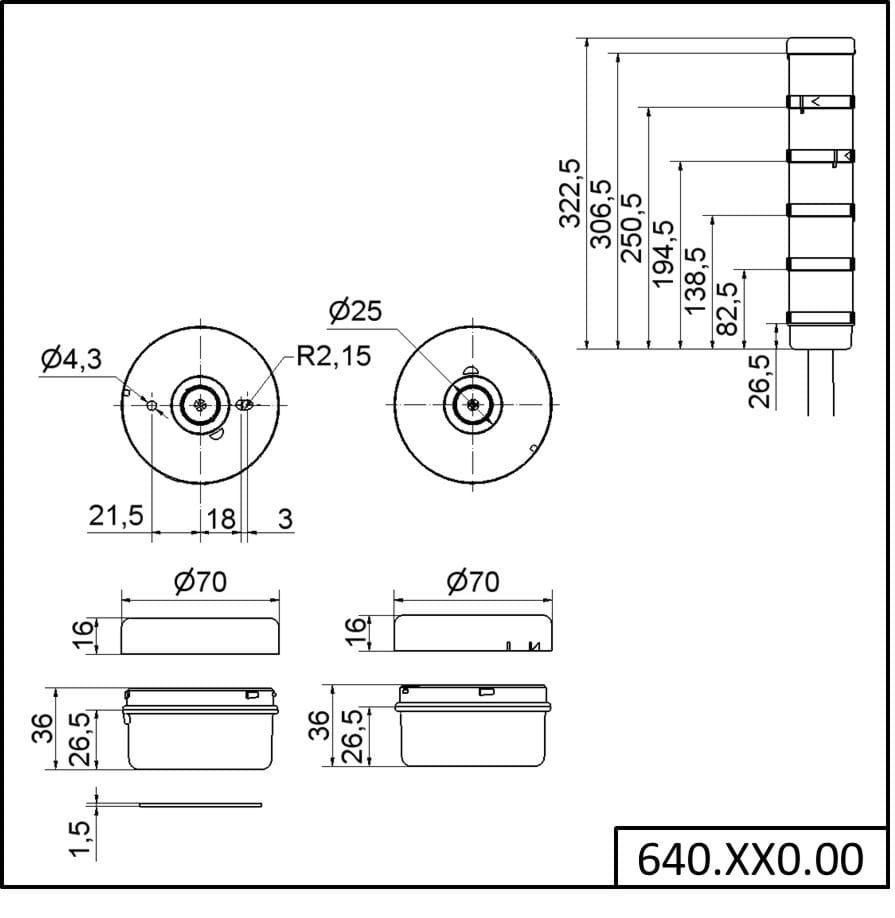

DIMENSIONAL
DRAWING


DATASHEET


OPERATING
INSTRUCTIONS
