Werma MC55 – RGY Cable – 24V DC

$79.81 USD

LED luminaire with small form factor and versatile applications

  • Compact LED recessed luminaire with continuous light and 55 mm
  • The tricolour version combines the most common colour combination red,
  • Control is via a simple cable connection.
SKU: 24021055 Category: Brand:

Mechanical Data

Cable length 1450
Height 71
Materials PC; PC/ABS
Diameter 55
Dome colour Translucent
Housing colour Black
Connection Cable
Protection Category IP65
Tension relief Pull-out protection
Type of fixing Built-in mounting
Working temperature minimum -20ºC
IK-Code (IEC 62262) IK06
Working temperature maximum +50ºC
Weight with packaging 125
Product weight 104

Electrical Data

Operating voltage 24V
Rated operational current 45
Operating voltage type DC
Operating voltage tolerance + / – 10%
Rated operational voltage 24 VDC
Rated inrush current <150mA
Protection class  Protection class 2
Overvoltage category I
Pollution degree 3; In the connection area: 2
Insulation voltage Ui = 50V / Uimp = 330V

Optical Data

Light source LED
Light colour MC 3 colours
Optical signal image Permanent
Service life optical 50.000 h minimum

Authorization Data

Conforms with CE Yes
Conforms with RoHS directive Yes
WEEE Yes
Conforms with ATEX-directive No
Conforms with RED directive No
Conforms with CCC No
Conforms with UL No
Conforms with FCC No
Conforms with ISED No
EAC certificate available No
Conforms with UKCA (Importer) Yes
Conforms with AS-I No
Conforms with RoHS CN 25 years
ICAO Certification No
Conforms with DNV No
Conforms with VdS No
MTTFd-value [years] 207
Conforms with TÜV No

Downloads

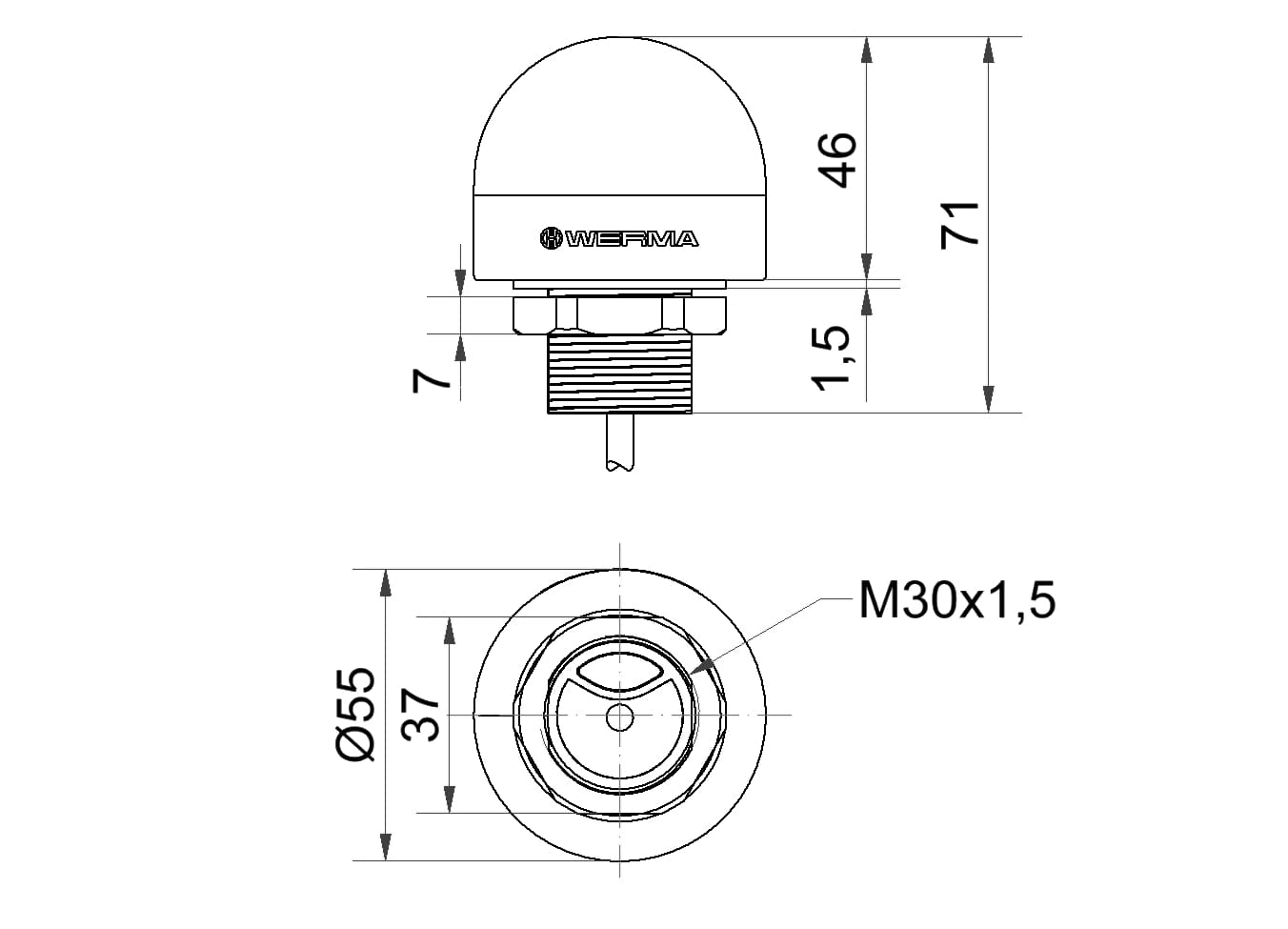

DIMENSIONAL DRAWING



DATASHEET



OPERATING INSTRUCTIONS



Werma MC55 - RGY Cable - 24V DC
Werma MC55 - RGY Cable - 24V DC - Image 2
