Werma eSIGN – 15 Segments, w/ Siren – Black

$512.00 USD

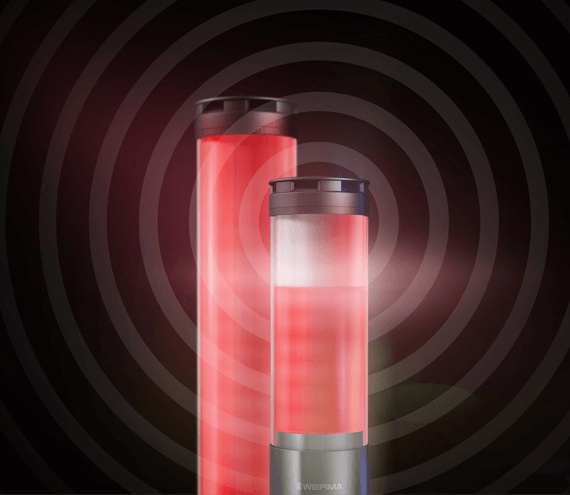

An electronically modular signal tower that sets new standards in terms of visibility, individuality and efficiency.

  • Fulfills Air Cleanliness Class 2 for Cleanroom applications in
  • Full-surface signalling with clear and unmistakeable light effects for
  • Versatile customisation options with different modes and light
  • UL Type 4X ensures resistance to UV radiation and environmental
  • Classic signal tower indication in individual tiers.
  • Autoscale mode for full-surface signalling and optimum visibility.
  • Variable filling level indication from 0 to 100 %.
  • Individual triggering to suit your requirements.
SKU: 65760055 Category: Brand:

Mechanical Data

Height 372
Materials PC
Diameter 72
Dome colour Translucent
Housing colour Black
Connection M12 plug 8-pole
Product weight 792
Protection Category IP66; IP69K
Weight with Packaging 849
Type of fixing Base mounting; Tube mounting
Working temperature minimum -30ºC
IK-Code (IEC 62262) IK08
Working temperature maximum +60ºC

Electrical Data

Operating voltage 24V
Rated operational current 620
Operating voltage type DC
Operating voltage tolerance + / – 10%
Rated operational voltage 24 VDC
Rated inrush current 800mA
Protection class  Protection class 3
Overvoltage category I
Pollution degree 3
Request to external PSU SELV / PELV
Insulation voltage Ui = 50V / Uimp = 330V
Connectivity Digital entrance; USB

Optical Data

Light source LED
Light colour MC & gt; 1,000,000 Farben/td>
Optical signal image Blink; Double flash; Flash; Permanent; Revolving; Triple flash
Blink frequency Configurable
Service life optical 50.000 h maximum

Authorization Data

Conforms with CE Yes
Conforms with RoHS directive Yes
WEEE Yes
Conforms with ATEX-directive No
Conforms with CCC No
Conforms with CCC-Ex No
Conforms with UL cULus
Conforms with FCC No
UL Type Rating Type 4/4X/12/13
Conforms with ISED No
EAC certificate available No
Conforms with UKCA (Importer) Yes
Conforms with AS-I No
Conforms with CMIM No
Conforms with RoHS CN No
Conforms with DNV No
Conforms with VdS No
MTTFd-value [years] 31
Conforms with TÜV No

Downloads

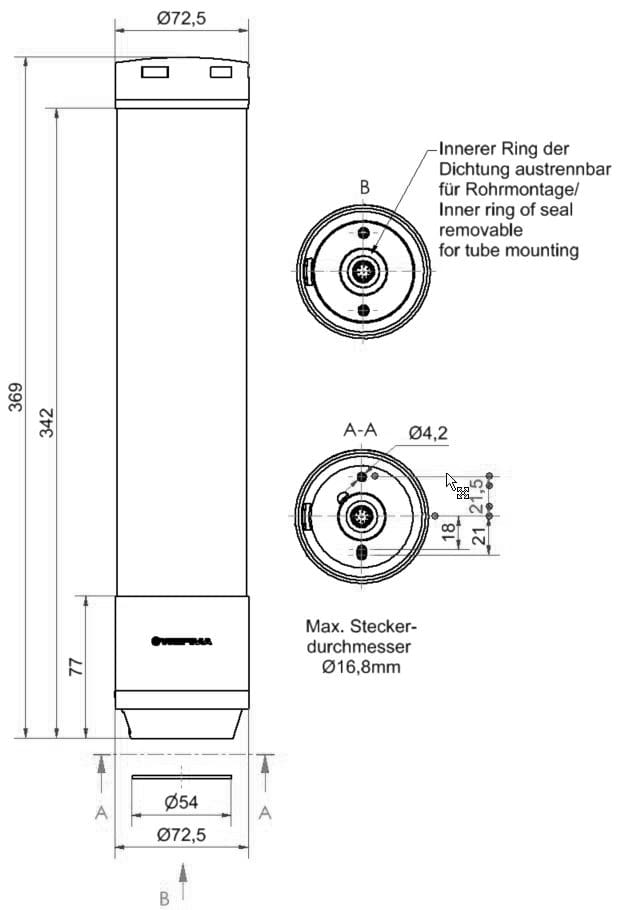

DIMENSIONAL DRAWING



DATASHEET



MANUAL



OPERATING INSTRUCTIONS
